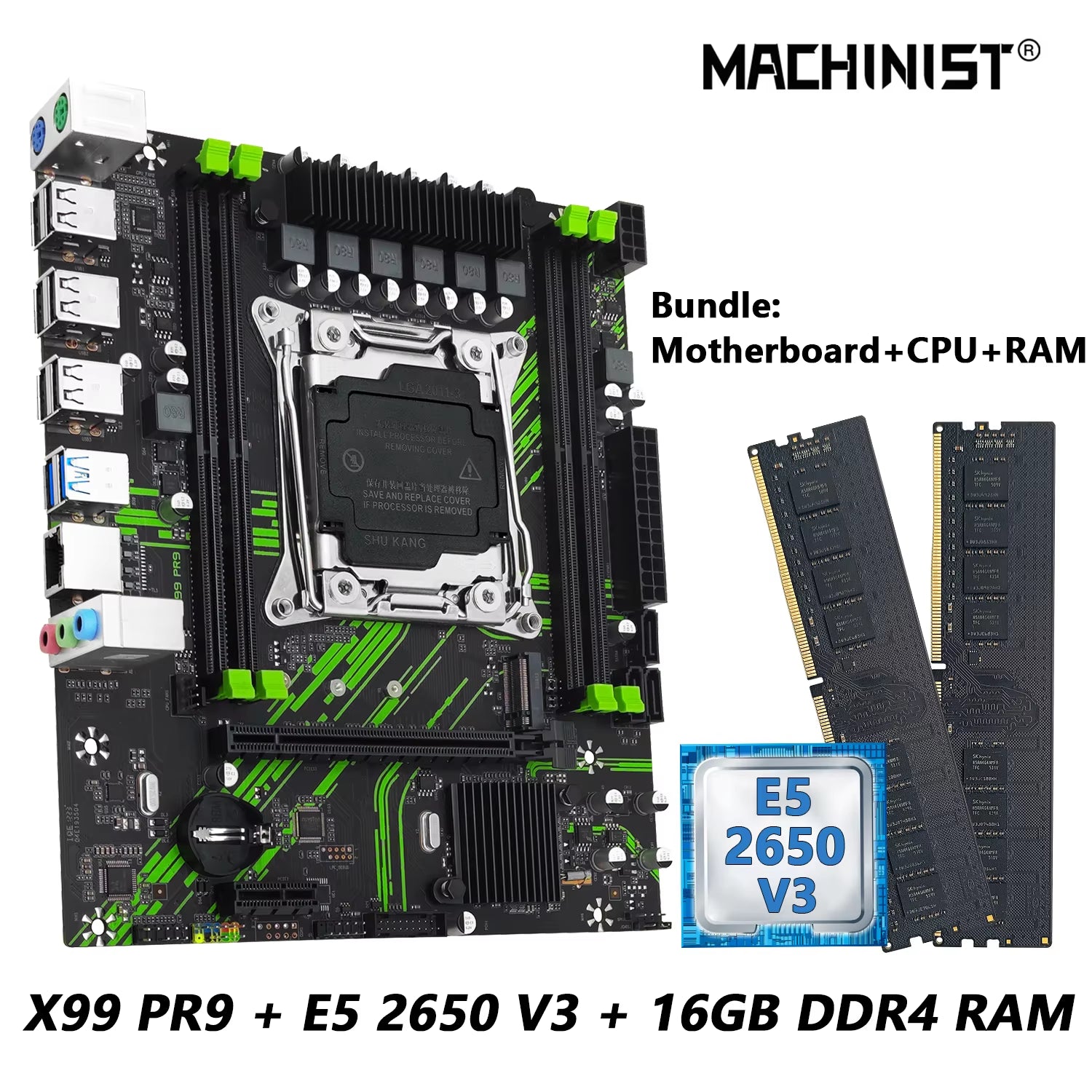

X99 PR9 Motherboard Kit Set LGA 2011-3 Set Intel Xeon E5 2650 V3 CPU and DDR4 16GB(2*8GB) RAM Optional Combo Usb3.0

>> Please note the bundle options before purchasing. Purchase a single motherboard. We do not send CPU and memory. Please check it carefully.

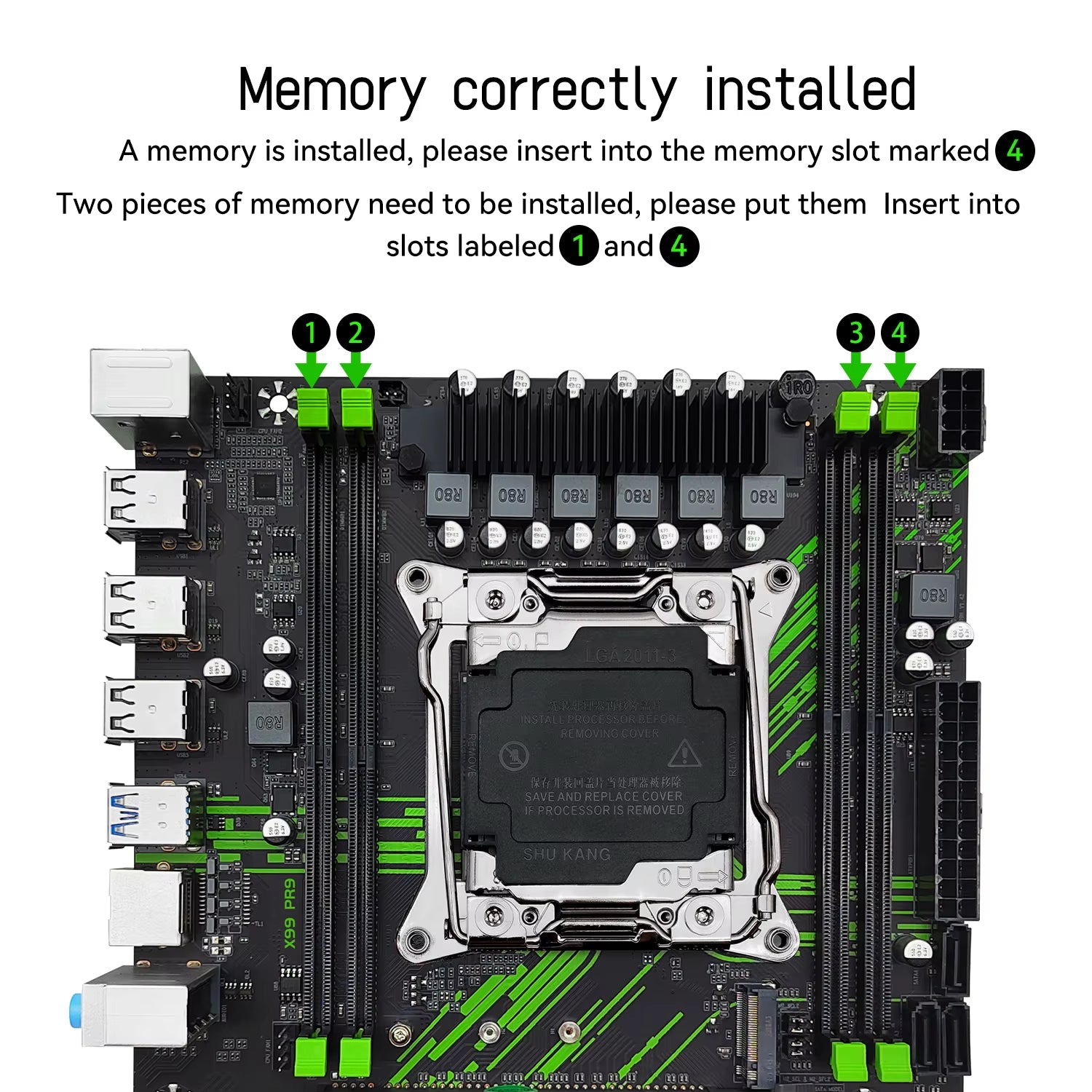

>> The motherboard memory slot needs to be properly installed in the fifth picture. Motherboard middle memory slot (#2/#3) does not work alone. A single RAM needs to be installed in slot #1. Both RAM needs to be installed preferentially in slot #1 and slot #4.)

# #Bundle: Motherboard: MACHINIST X99 PR9 2011-3 Motherboard *1Pcs.

# #Bundle: Motherboard+CPU:

Motherboard: MACHINIST X99 PR9 2011-3 motherboard *1Pcs.

Processor: Intel Xeon E5 2650 V3 x 1Pcs.

# # #Bundle: Motherboard+CPU+RAM:

Motherboard: MACHINIST X99 PR9 2011-3 motherboard *1Pcs.

Processor: Intel Xeon E5 2650 V3 x 1Pcs.

RAM: DDR4 8GB 2133MHz desktop memory *2PCS;

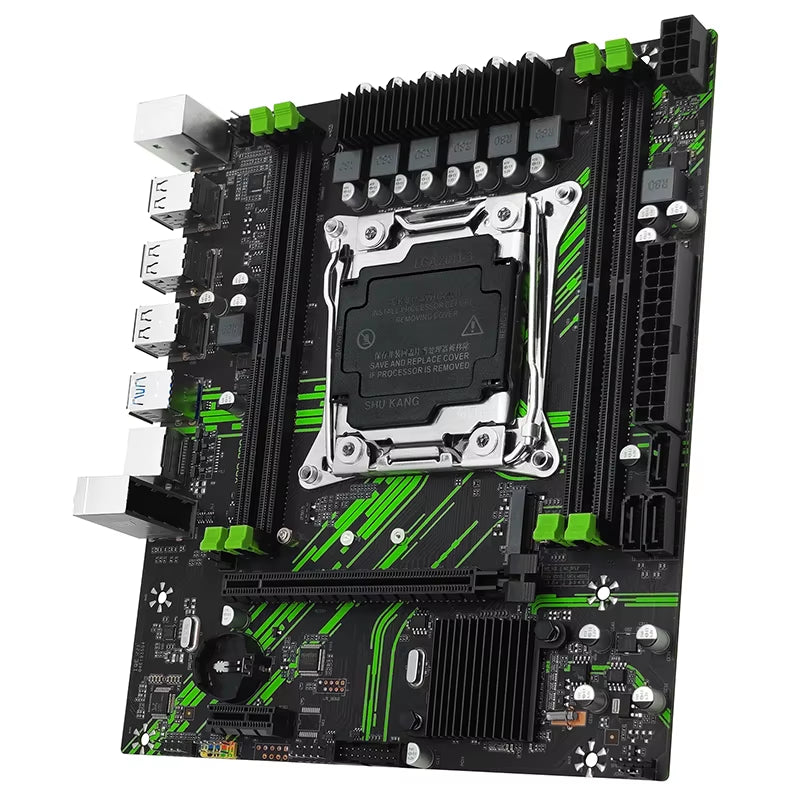

> > Motherboard information:

Brand :MACHINIST.

Motherboard model :X99 PR9.

Processor: Support LGA 2011-3 series,

Chipset :B85/Q87/C226 Chipset.

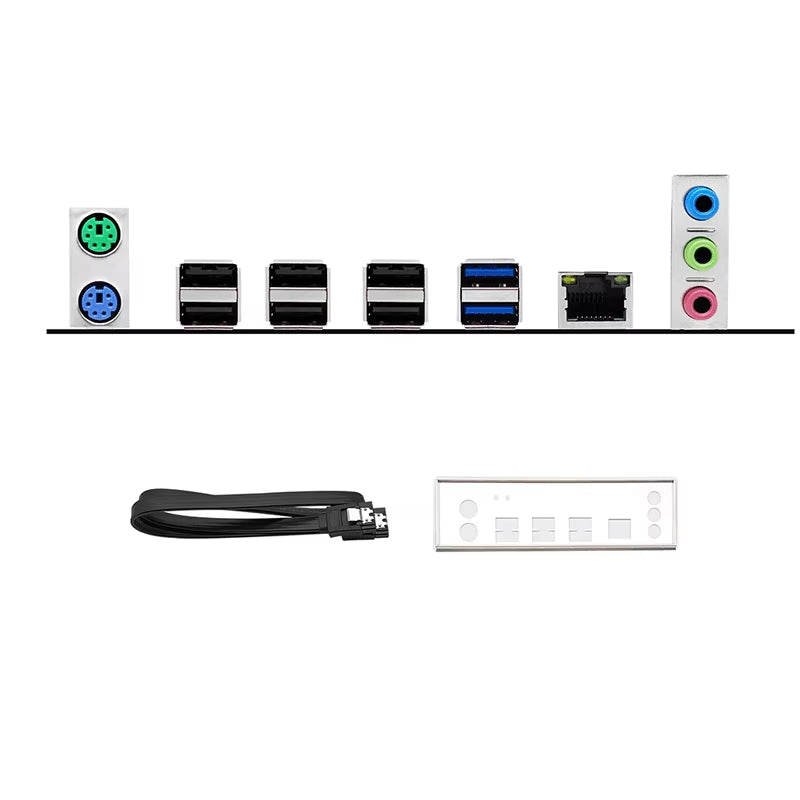

(Complimentary accessories: I/O shield *1, SATA cable *1, lga 2011 cooling bracket *1.

(>> Packaging is carried out after manual testing before sending. If there is any missing gift, it cannot be used as a reason for refund. Please understand!)

> > Memory:

Technology: Dual channel DDR4. Support 2133/2400/2666/3000/3200 MHZ.

The maximum capacity is 128GB (32G x 4).

Memory slot :4 x 288 PIN DDR4.

Note #1: Please use international brands such as Samsung, Kingston, Sandisk, Micron etc. Other brands are incompatible.

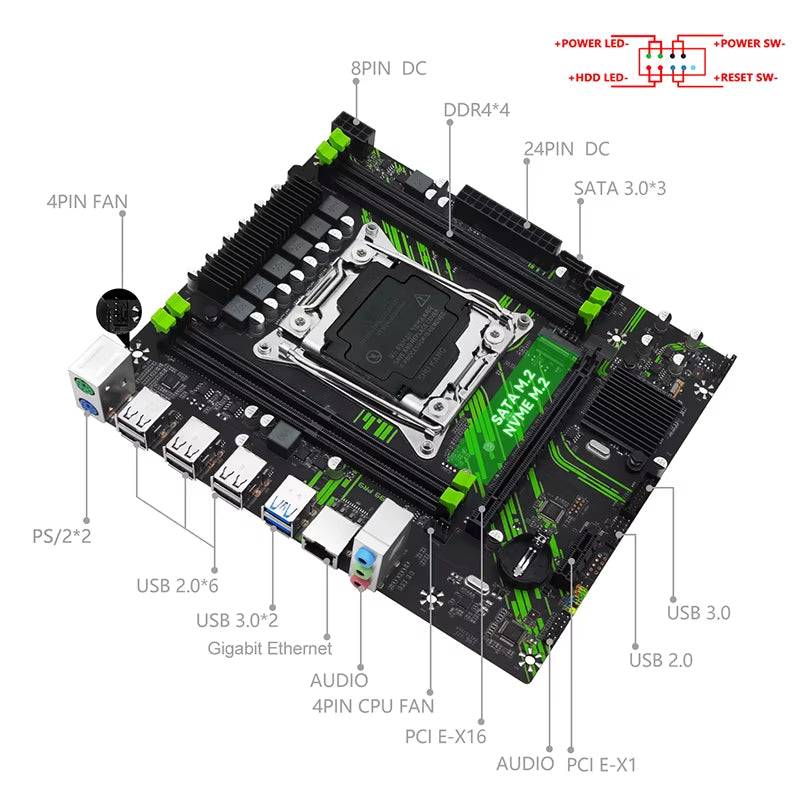

>> Post I/O:

PS/2: one KB port + one MS port.

USB interface :6 USB2.0; 2 USB3.0.

Ethernet: one Gigabit network adapter.

Audio :1 (Mic-in, Line-out, Line-in).

>> Other:

SATA interface :2 (SATA2.0), 1 (SATA3.0).

M. Two: one (nvme/sata).

PCIe: One PCIe 16x and one PCIe 1x.

Processor information:

Model: E5 2650 V3.

Manufacturing process: 22nm.

Number of cores: 10.

Number of threads: 20.

CPU main frequency: 2.3GHz.

Turbo frequency: 2.6GHz.

TDP: 105W.

The processor supports memory specifications: DDR4 2133.>> Regarding the tariff issue, please make sure that you can solve the customs clearance problem yourself, if you can't solve it, we do not recommend that you buy products in our store. We are not responsible for tariffs. Thank you for your understanding.

>> Note:

(1) The color of the tank bottom plate may vary from batch to batch, but it will not affect the use of the product. Products are constantly optimized and upgraded.

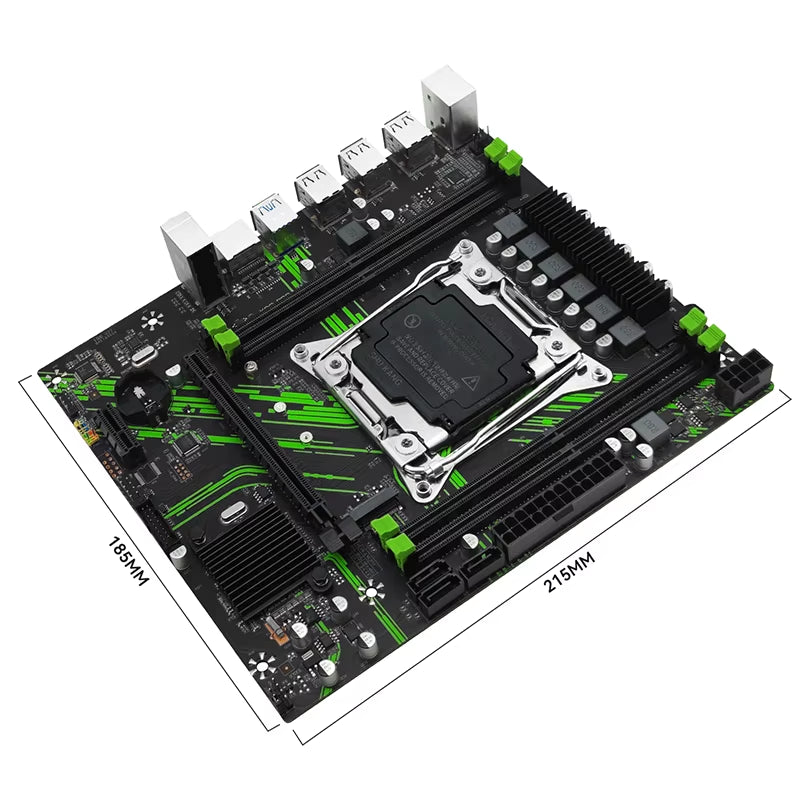

(2) Due to manual measurement, please allow an error of 1-3mm.

(3) Due to different displays and different lighting, the picture may not show the actual color of the item. Thank you for your understanding.

(4) The platform needs a powerful power supply. Make sure your power supply is sufficient to support this platform. (At least 500w brand power supply)
